Другая Другая, 2025 р.в.

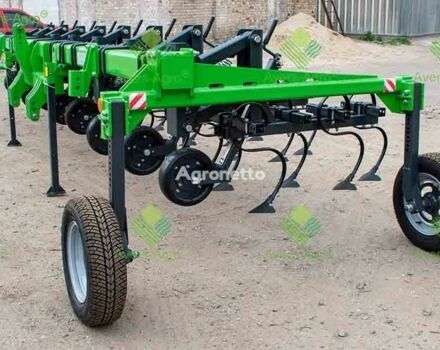

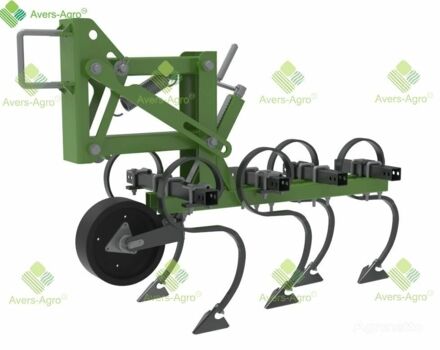

designed for inter-row processing of any crops: cereals, row crops, vegetables, etc .; struggles with one and perennial weeds resistant to soil herbicides; destroys the soil crust, loosens the surface of the field, creates a mulching layer on the soil surface to preserve moisture; improves water permeability and air quality of the soil; activates microbiological processes in the soil; fertilizes the soil; zone robots light, medium, heavy soils; it is most effective to use a cultivator cultivating immediately after rain; the depth of processing depends on the timing, phase of crop development and soil moisture. has a high frame, which allows for inter-row processing at a later date of vegetation; processes crops of row crops with low and high stems up to 90 cm; the method of fastening sections with working bodies makes it easy to adapt to different row spacing, row spacing can be adjusted from 45 to 70 cm; sections with working bodies of the cultivator are equipped with universal lancet paws mounted on a spring vibration stand; legs and racks are made of steel of high wear resistance, leg width 150 mm; five working bodies are fixed on one section when adjusting for a row spacing of 600-700 mm or three working bodies when processing a row spacing of 450-500 mm; each section with working bodies has a support wheel, which makes it possible to copy the surface of the field along the entire width of the processing unit; a safety spring is installed on each section with working bodies, which ensures the correct clamping force and accurate retention of the depth of tillage; in the design of sections with working bodies, plain bearings are used that do not require maintenance; rolling bearings of the support wheels are protected by anthers, which allows to extend their service life; it is used in various soil and climatic zones when treating soils of different mechanical composition with moisture up to 28% and hardness up to 3.5 MPa (35kg / cm²); the cultivator is transferred from the working position to the transport one and vice versa by lowering the tractor hitch, in the parking position the cultivator is on supports; on the design and method of aggregation mounted cultivator; aggregation with wheeled and tracked tractors from 60 hp; attendants - 1 person (tractor driver). has a high frame, which allows for inter-row processing at a later date of vegetation; processes crops of row crops with low and high stems up to 90 cm; the method of fastening sections with working bodies makes it easy to adapt to different row spacing, row spacing can be adjusted from 45 to 70 cm; sections with working bodies of the cultivator are equipped with universal lancet paws mounted on a spring vibration stand; legs and racks are made of steel of high wear resistance, leg width 150 mm; five working bodies are fixed on one section when adjusting for a row spacing of 600-700 mm or three working bodies when processing a row spacing of 450-500 mm; each section with working bodies has a support wheel, which makes it possible to copy the surface of the field along the entire width of the processing unit; a safety spring is installed on each section with working bodies, which ensures the correct clamping force and accurate retention of the depth of tillage; in the design of sections with working bodies, plain bearings are used that do not require maintenance; rolling bearings of the support wheels are protected by anthers, which allows to extend their service life; it is used in various soil and climatic zones when treating soils of different mechanical composition with moisture up to 28% and hardness up to 3.5 MPa (35kg / cm²); the cultivator is transferred from the working position to the transport one and vice versa by lowering the tractor hitch, in the parking position the cultivator is on supports; on the design and method of aggregation mounted cultivator; aggregation with wheeled and tracked tractors from 60 hp; attendants - 1 person (tractor driver). liquid and dry fertilizer application system; auxiliary guards protecting plant leaves from damage or falling asleep with soil; finger polyurethane wheels; skrebniki; various combinations of paws. liquid and dry fertilizer application system; auxiliary guards protecting plant leaves from damage or falling asleep with soil; finger polyurethane wheels; skrebniki; various combinations of paws. Working speed, km / h ... 3-10 Working width, m ... 4.2 Productivity, ha / h ... 1.3-4.2 Max. processing depth, mm ... 120 Working bodies (for row spacing 700 mm), pcs ... 7 Minimum row spacing, mm ... 450 Maximum row spacing, mm ... 700 The paw is wide, mm ... 150 Transport speed, km / h ... 20 Unit weight, kg ... 1350 Tractor power, not less than hp ... 60 Type ... mounted Attendants, people ... 1 (tractor operator)
